Assignment 2 - Bluesky Moderation

Credits: Cornell CS 5342, original [link](CS5342 Automated moderator for Bluesky), GitHub

In this assignment, you will gain first-hand experience with Bluesky’s customizable approach to moderation. We’ll walk you through implementing a labeler, which is a service that attaches categorical labels to Bluesky posts and accounts. Users who subscribe to your labeler can configure how these labels are applied to the posts they see. For instance, your service may attach a label for spam or NSFW content (throughout, content will refer to both posts and accounts). Some users may wish to hide such content altogether, others may prefer that a badge be attached to it.

Recall that content moderation is not solely about blocking harmful content. It can also be about organizing and displaying content in a way that is helpful to users. Similarly, labelers are not just for marking definitely objectionable posts and accounts. Here are a few examples:

You can find more examples of labelers at Bluesky-labelers.io. We encourage you to try some of them out before starting the assignment.

In the first part of the assignment, you will build an automated labeler that will apply labels to Bluesky posts based on their text content. We will provide a test set of posts and their expected labels in a CSV file. You should not hard-code these labels in your implementation – we will test your code on some examples that do not appear in this test set, and a portion of your grade will be based on your labeler’s accuracy on these instances. Furthermore, if you do hard-code labels for particular posts, you will receive a 0 for the functionality score. If your labeler produces nothing for all inputs, it will also receive a 0.

In the second part of this assignment, you will implement your own automated moderation policy as a Bluesky labeler. This can be the policy you articulated in Assignment 2, but you are free to choose another topic. We expect you to comprehensively test your code for this component. The extent to which your code and testing is well-documented will constitute a portion of your grade. This part of the assignment is more open-ended, so you’ll have to demonstrate to us that you’ve thought through how you can verify that your implementation will meet your stated moderation goal. The creativity you demonstrate in your chosen problem/solution will also constitute a portion of your grade.

Throughout this class we have discussed how safety measures can in turn be abused. We encourage you to continuously check the work that you are doing for unintended consequences and follow our course’s policy on engaging with harmful content. You should be particularly careful when completing Milestone 5. This will include documenting your process carefully, clearly signposting the exercise as an academic effort, and providing a way for labeled users to express any concerns with the label.

You can find a detailed discussion of the Bluesky moderation infrastructure here. We provide a high-level overview below. Account data is hosted at a personal data server (PDS). This data is distributed, via a relay, to an AppView service. Labelers are services that generate labels on posts and accounts. These labels are sent to the AppView. When user client devices download posts from the AppView, they obtain labels associated with the content they received, depending on what labelers they are subscribed to.

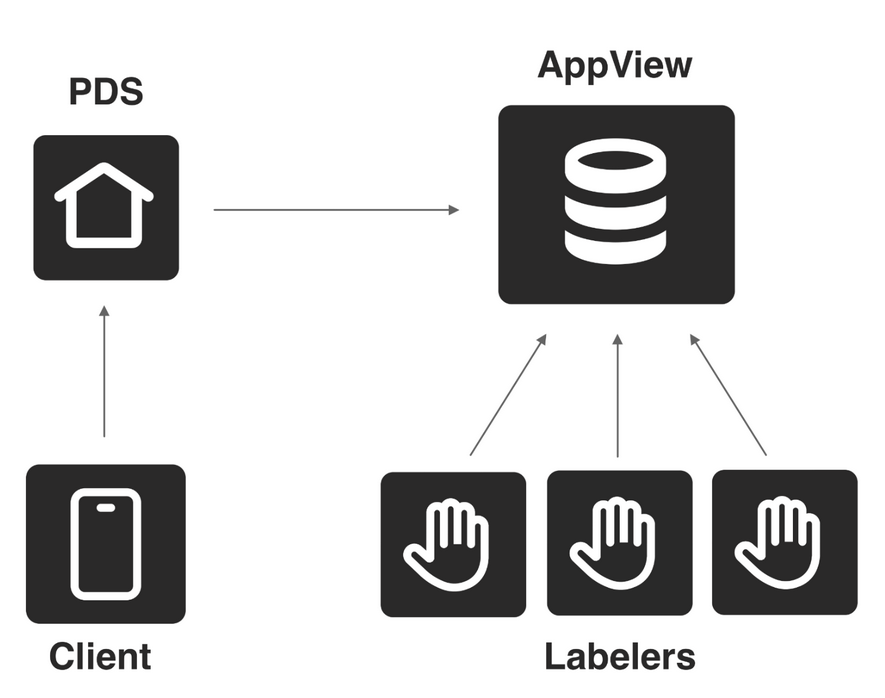

The figure above^[1], from the Bluesky moderation infrastructure overview, provides a visual representation of how labels are generated and sent to the AppView. Bluesky provides its own labeler that handles platform-level moderation policies. In addition to this, users can opt into other third-party labelers for additional layers of moderation. You will implement and run one such labeler for this assignment.

You can access the starter code from the class Github, under the bluesky-assign3 directory.

In an actual production environment, your labeler would likely ingest posts from the firehose, which provides a stream of content as it is disseminated through the network. However, for the purposes of this assignment, your labeler will be ingesting posts from a CSV file. This will allow for easier testing and debugging.

In this assignment, your labeler consists of two components: the first is the labeling server, which interfaces with the AppView to attach labels to content. This is a Javascript program that uses the skyware/labeler library. The second component is your labeler bot, which you will implement as a python program that will interface with the labeler server to produce labels.

In order to create a labeler, you need a public domain to host the labeling server and a Bluesky account associated with the labeler. We will handle the hosting of the labeling server for you. If you’re interested in an additional challenge and want to own/operate your own labeling infrastructure, you can consult this guide. For the purposes of completing this assignment, you are not required to make your labeler live (i.e., emit public labels). In fact, for Part II, you should be careful to check with us before you start attaching labels to public posts. However, we give you the option to emit labels so you can see your hard work in action on the Bluesky network.

Start by creating your own GitHub repository with a clone of the starter code.

Make sure you have nodejs and python installed. Install the skyware labeler package with the following command:

npm install @skyware/labeler

Make sure you have Python 3 installed, along with the ATProto, Dotenv, Requests, and Perception modules:

pip install atproto dotenv requests perception

Run the following command in the starter code directory to ensure that you can access posts.

python get_post_test.py

If this runs successfully, you are ready to begin the assignment. Testing that you can emit public labels (the following section) is optional.

From your browser, visit https://<your-domain>/xrpc/com.atproto.label.queryLabels
This will display all the labelers that have been issued by your labeler. Initially, this list will be empty. Let’s change that. Run the following command to apply a label to the bsky.app account:

python label.py post https://bsky.app/profile/bsky.app/post/3l6oveex3ii2l great

This applies a “great” label to the post at the specified URL. You can use the skyware/labeler command line utility to modify the labels that your labeler supports.

Subscribe to your labeler from a different account (perhaps your personal bluesky account) and visit the post in the URL to observe that the label has been applied:

You can also use the Label Scanner tool to verify that your label was applied to the post.

At this point, you have confirmed that you can emit labels for particular posts and accounts via the command line tool. That’s a great achievement already – you have the essential infrastructure for running your own third-party moderation service on Bluesky, congratulations!

Now, you’ll automatically apply labels based on posts that meet certain criteria. Open up automated-labeler.py. You’ll notice that we provide a constructor for your labeler and a moderate_post function. This function takes as input a url to a Bluesky post and produces an List[str], i.e., the function returns a list of string, corresponding to a label if there is one to be added for the post, or a [] value if there are no labels to add. You must implement your labeling logic in this function as this will interface with the auto-grader for the assignment. When you run your labeler via test-labeler.py, the output of moderate_post will be used to emit a label via the label_post function defined in label.py. You can configure whether to actually emit labels to the Bluesky network via a command-line argument for test-labeler.py – while you’re testing your code, you shouldn’t be emitting labels.

A portion of your grade will consist of your coding style – your code should be legible and well-organized. You should decompose the logic in moderate_post across different functions that you’ll define for your AutomatedLabeler.

For Part I, we will provide an isolated testing script for you to test how your code generates labels. This will be the same script that our auto-grader will use in determining the functionality score for Part I. You may find this script helpful for your testing set-up in Part II as well.

A common moderation technique that platforms employ is text matching against a list of known harmful text. In this part of the assignment, you will implement this technique to label posts containing Trust-and-Safety-related words/domains. We sourced the words from the TSPA glossary.
You will find this list in t-and-s-words.csv and a list of T&S domains in t-and-s-domains.csv. For each post in input-posts-t-and-s.csv, apply a “t-and-s” label to those that match either list. Make sure to take into account case sensitivity. If the word “moderate” is on the list, then a post containing the word “mOderAtE” should also be labeled.

Label posts that link to news articles with the news publications with which they are affiliated. You will have to create labels for the following publications: CNN, BBC, NYT, Washington Post, Fox News, Reuters, NPR, AP. The file news-domains.csv will contain a list of the domains you should scan for, along with the label to apply. For each post in input-posts-cite.csv, apply the appropriate label(s). Note that if there are multiple news links from different sources, then multiple labels should be generated for each source. If there are multiple links from the same source, then only one label should be generated.

Many platforms employ a technique called perceptual hash matching in order to detect harmful or illegal images. An image is passed through a perceptual hash function, which outputs a bitstring (a sequence of 0’s and 1’s), such that two similar images should hash to similar bitstrings. In this part of the assignment, you will use this technique to identify pictures of dogs that match a known list (the dog-list).

For posts in input-posts-dogs.csv containing an image matching the image dog-list (the images in the dog-list-images directory – sourced from WeRateDogs), apply the “dog” label. A match is defined as the image being within a hamming distance of THRESH^[2] of the target image’s perceptual hash. You can use the PHash implementation provided here to perform perceptual hashing.

We leave it to you to figure out how to extract the image(s) contained within a post. You’ll find it helpful to consult the atproto documentation along with the PIL and requests python modules. See if you can notice a pattern in the URLs associated with post images.

In Part I of this assignment, you gained familiarity with the AT protocol and implemented automated moderation routines. Using those skills, you’ll extend your labeler to handle a harm type of your choice. You are encouraged to implement the policy proposal you outlined in Assignment 2 because you’ll have spent significant time grappling with it, but you are also free to choose a different problem to tackle if you don’t think you can implement your solutions from Assignment 2. Your choice to build on Assignment 2 or start anew will not affect your grade. Recall that your implementation for Part II should be in a file named policy_proposal_labeler.py.

We expect your problem selection and solution to demonstrate a reasonable level of creativity, sophistication, and involvement. For instance, tackling toxicity by making a call to the Perspective API for each post and attaching a “toxic” label if it exceeds some threshold would not suffice. You will likely have to iterate on your policy proposal and implementation to achieve something reasonable. Document this process and discuss it in your presentation.

You should begin by gathering data on the harm you plan to tackle. This will inform your testing approach and solution design. You can use the ATProto SDK to crawl Bluesky and filter for content that may be relevant to the harm you address. You can also leverage research done for Assignment 2. Part of your grade will be based on the description, execution, and efficacy of your testing setup. Depending on your approach, you may have to manually label some of the data you collect. We do not want you to deal with illegal or severely harmful content (e.g. sale/solicitation of illegal substances, CSAM, etc).

Remember that precision in labeling at scale is difficult – and you only have a few weeks. For that reason, we encourage you to choose a labeling implementation that recognizes it is detecting potentially sensitive content rather than one that is categorical about finding the harmful material – unless you can be highly confident about the accuracy of your endeavors. You can help yourself by being precise about what you call the labeler; you can then explain why that labeler might help fight the harm you care about in your presentation / video. Here are some illustrative examples:

For inspiration, we provide below a non-exhaustive list of inputs, signals, and tools you may consider using in your labeler:

For full transparency, you should make it clear in the description of your labeler account that your labeler is part of an educational exercise and that it should not be trusted for complete accuracy. You should also collect and respond to any serious criticism.

Take care to consider the ethical implications of deploying your labeler and ensure that it does not lead to or provide a vector for abuse/harm. For instance, you could see how labeling non-notable individuals for their perceived political position on a hot-button topic could lead to doxxing campaigns or worse. Please feel free to reach out to us if you want to gut-check your proposed labeler for possible harmful consequences.

We expect you to test on a reasonably large number of posts (e.g. somewhere in the ballpark of ~100), and evaluate the accuracy, precision, and recall of your labeler (for labelers highly dependent on user input, this analysis may look slightly different). You should also discuss the efficiency and performance of your labeler in terms of the amount of computation and memory it requires – these are things you may consider measuring e.g., How long does it take your labeler to make a decision on a particular post? How much memory does it consume? How much network communication does it require?

As you build an application that interfaces with Bluesky and the AT protocol, you’ll likely have conceptual questions about how the protocol and python SDK work. Additionally you may wonder about useful APIs for implementing your Part II solution. We list relevant resources below:

Your grade in the assignment will be made up following components:
